Next-Generation Polyimide Labels for Advanced PCB Manufacturing

Overview

The Apex™ Series is engineered for next-generation PCB manufacturing. Advanced coating technology delivers exceptional resistance to high-temperature reflow, aggressive cleaning chemicals, and demanding production environments while maintaining superior print quality, durable adhesion, and reliable traceability.

Features

• Improved Heat Resistance — engineered for extreme thermal cycles, keeping labels secure and readable.

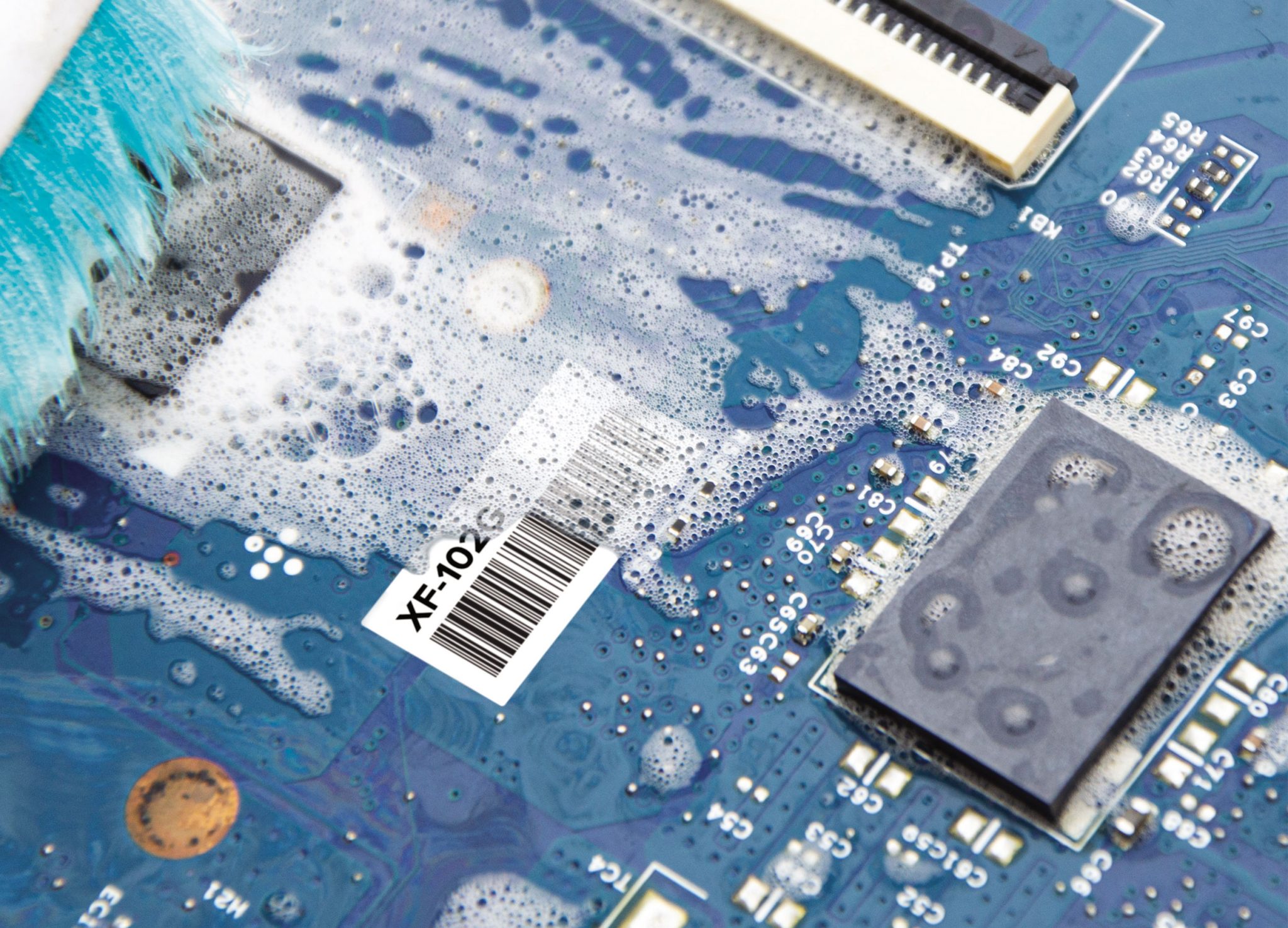

• Improved Chemical & Flux Resistance — withstands the harshest PCB processes, including high-pressure washes and aggressive fluxes.
• Precision Readability — maintains small-font and barcode readability through reflow and cleaning.
• Superior Print Performance — optimized for crisp, high-contrast TTR printability.
• Made in the USA, trusted global supplier — the quality you expect from a specialist in high-performance label materials.

Benefits

• Built for today’s fluxes, cleaners, and multi-cycle reflow.
• 72% improvement in flux solder performance vs. our legacy line, validated in testing.
• 15% improvement in cleaner resistance vs. our legacy line, helping labels survive high-pressure washes.
• Enhanced ink transfer for more defined images, even at smaller font sizes — designed to extend printhead life and maintain readability through exposure to highly caustic solutions.
• Coating and adhesive system engineered for elevated temperatures, ensuring labels stay put and remain readable.

Specifications

• Construction: high-temperature permanent acrylic PSA · thermal-transfer printable white polyimide.
• Temperature: 100 h @ 150 °C (long-term) · 5 min @ 260 °C (operating) · 90 sec @ 300 °C (short-term) — survives multi-cycle reflow.
• Tack ≥ 1000 g/in (XF-101S) / ≥ 1200 g/in (XF-102 series); Taber abrasion resistant; passes MIL-STD-202G Method 215K; flux & cleaner resistant (Kyzen, Zestron, IPA).
• XF-101ME, XF-101SE and XF-102SE are static-dissipative: static decay 0.02 s · low-charging PSA/liner < 125 V.
• Compliance: REACH · RoHS. UL File # PGJI2.MH19503 (UL 969 label+ribbon approvals pending).
